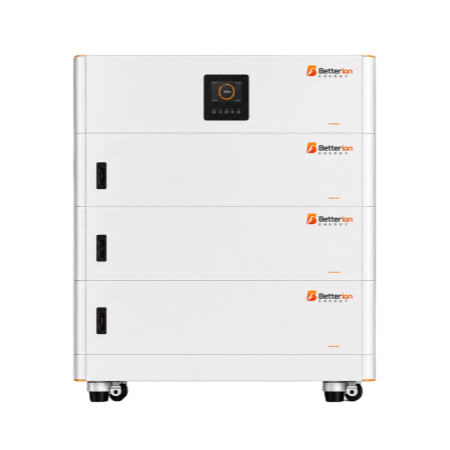

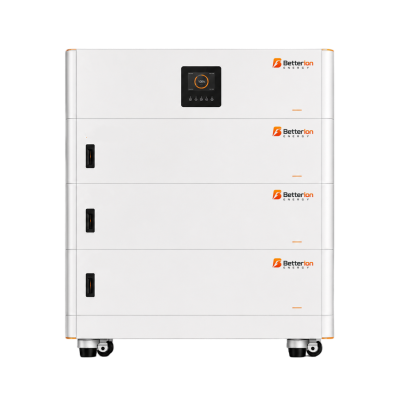

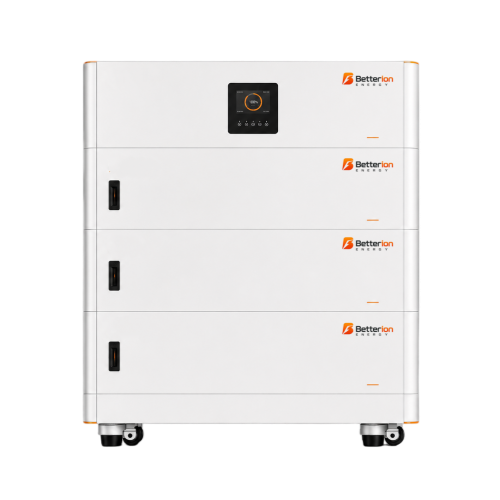

Applicable to Residence and small industrial and commercial scenarios. It features a free-stacking design and is plug-and-play. It is equipped with high-capacity battery cells. An aerosol fire extinguisher is built-in, which can automatically extinguish fires within seconds, providing all-round protection for your power-using safety.
Simple Architecture
Stacked Installation
Pack-level Fire Protection
Low-noise Operation
With a modular design, it can be expanded from 4 modulesto 16, and the capacity ranges from 5kWh to 80kWh
Selects A-grade LFP battery cells from Tier 1 brands. It has stable performance, a long cycle life, and can reach up to 6000 charge - discharge cycles.
Can adapt to mainstream brands inverters in the market.
Cloud analysis significantly reduces operation and maintenance costs
Battery Module Type LiFePO4
Operating Voltage（Input） 90-280Vac±3V（APP Mode)
170-280Vac±3V（UPS Mode）
Operating Voltage（Output） 220/230/240Vac±5%
Nominal Capacity 6.2KW
Inverter Module Dimensions [W/D/H] 500*600*160mm
Battery Nominal Energy 5KWh-25KWh
Charging Temperature Range 0-60℃
Discharging Temperature Range 0-65℃
Battery Module Weight [kg] 55kg
Battery Module Dimension (W×D×H) 500*600*160mm
